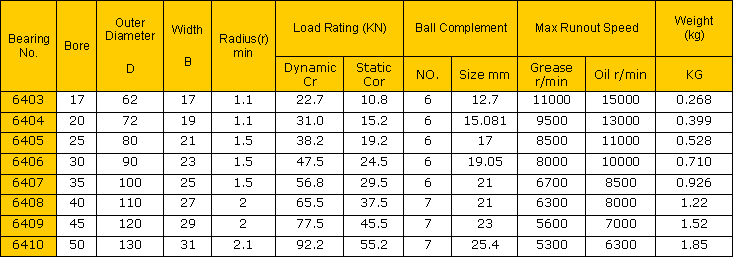

Deep Groove Ball Bearing > 6400 series
Deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction
Suitable for high-speed applications
Pressed cages are generally used in deep groove ball bearings
Machined cages are used for large and high-speed bearings
67 series: 6700-6706
68 series: 6800-6834
69 series: 6900-6934
160 series: 16001-16052
60 series: 6000-6052
62 series: 6200-6244
63 series: 6300-6344
64 series: 6403-6316
Material: AISI52100, AISI440C
Shields: open, Z, ZZ, RS, 2RS are available
Type of snap ring groove (N) or snap ring (NR) are available
Available with radial internal clearance of C2, normal, C3, C4, C5
Available with tolerance of V1, V2, V2
Lubrication: grease in most sealed types, oil in open types
Non-standard single row deep groove bearing with sample or drawings are welcome
6000 series
6200 series
6300 series
